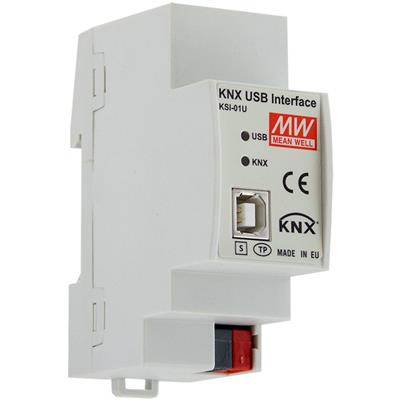

MEAN WELL KSI-01U – KNX-USB-liitäntä galvaanisella eristyksellä

<h4 data-start="2106" data-end="2137"><strong data-start="2111" data-end="2137">Keskeiset ominaisuudet</strong></h4>
<ul data-start="2139" data-end="2744">
<li data-start="2139" data-end="2251">
<strong data-start="2141" data-end="2164">Galvaaninen eristys</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Varmistaa turvallisen ja luotettavan tiedonsiirron tietokoneen ja KNX-väylän välillä.</span>​</li>
<li data-start="2252" data-end="2374">
<strong data-start="2254" data-end="2287">Kaksisuuntainen kommunikaatio</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Mahdollistaa sekä lukemisen että kirjoittamisen KNX-väylään, mikä on hyödyllistä esimerkiksi käyttöönotossa, parametrien asettamisessa ja diagnostiikassa.</span>​</li>
<li data-start="2375" data-end="2489">
<strong data-start="2377" data-end="2402">Pitkien viestien tuki</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Tukee jopa 220 tavun APDU-viestejä, mikä mahdollistaa suurten datapakettien käsittelyn.</span>
</li>
<li data-start="2490" data-end="2599">
<strong data-start="2492" data-end="2512">DIN-kiskoasennus</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Kompakti rakenne sopii standardiin 35 mm DIN-kiskoon, mikä helpottaa asennusta sähkökaappeihin.</span>​</li>
<li data-start="2600" data-end="2744">
<strong data-start="2602" data-end="2617">Plug &amp; Play</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Tunnistetaan HID-laitteena, joten erillisiä ajureita ei tarvita Windows- tai Linux-käyttöjärjestelmissä.</span> ​</li>
</ul>
<hr data-start="2746" data-end="2749">
<h4 data-start="2751" data-end="2773"><strong data-start="2756" data-end="2773">Käyttökohteet</strong></h4>
<ul data-start="2775" data-end="3233">
<li data-start="2775" data-end="2886">
<strong data-start="2777" data-end="2799">Rakennusautomaatio</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">KNX-järjestelmien konfigurointi ja valvonta tietokoneen kautta.</span>​</li>
<li data-start="2887" data-end="3009">
<strong data-start="2889" data-end="2922">Vianmääritys ja diagnostiikka</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">KNX-väylän liikenteen seuranta ja analysointi.</span>​</li>
<li data-start="3010" data-end="3126">
<strong data-start="3012" data-end="3039">Parametrien asettaminen</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">KNX-laitteiden asetusten määrittäminen ja päivittäminen.</span>​</li>
<li data-start="3127" data-end="3233">
<strong data-start="3129" data-end="3146">Visualisointi</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">KNX-järjestelmän tietojen esittäminen graafisesti tietokoneella.</span>​</li>
</ul>

<table data-start="518" data-end="2099">
<thead data-start="518" data-end="584">
<tr data-start="518" data-end="584">
<th data-start="518" data-end="547"><strong data-start="520" data-end="534">Ominaisuus</strong></th>
<th data-start="547" data-end="584"><strong data-start="549" data-end="557">Arvo</strong></th>
</tr>
</thead>
<tbody data-start="652" data-end="2099">
<tr data-start="652" data-end="776">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Malli</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">KSI-01U</span></td>
</tr>
<tr data-start="777" data-end="879">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="15" data-is-last-node="" data-is-only-node="">Tulojännite</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">21–30 V DC (KNX-väylästä)</span></td>
</tr>
<tr data-start="880" data-end="982">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="17" data-is-last-node="" data-is-only-node="">Virrankulutus</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">KNX: &lt; 5 mA, USB: &lt; 20 mA</span></td>
</tr>
<tr data-start="983" data-end="1104">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Yhteysprotokolla</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">KNX</span></td>
</tr>
<tr data-start="1105" data-end="1217">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="15" data-is-last-node="" data-is-only-node="">Asennustapa</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">DIN-kisko (35 mm)</span></td>
</tr>
<tr data-start="1218" data-end="1338">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Kotelointiluokka</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">IP20</span></td>
</tr>
<tr data-start="1339" data-end="1447">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="21" data-is-last-node="" data-is-only-node="">Mitat (L × K × S)</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">36 × 90 × 71 mm</span></td>
</tr>
<tr data-start="1448" data-end="1579">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Paino</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">62 g</span></td>
</tr>
<tr data-start="1580" data-end="1699">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Kotelomateriaali</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Muovi</span></td>
</tr>
<tr data-start="1700" data-end="1805">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Suojaustoiminnot</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Galvaaninen eristys</span></td>
</tr>
<tr data-start="1806" data-end="1925">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="17" data-is-last-node="" data-is-only-node="">Sertifikaatit</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">CE, RoHS</span></td>
</tr>
<tr data-start="1926" data-end="2099">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Takuu</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">3 vuotta</span></td>
</tr>
</tbody>
</table>

• Lataa tiedostoKSI-01U-CE-dec.pdf
• Lataa tiedostoKSI-01U.pdf
