Säädettävä LED-vakiojänniteteholähde Mean Well HLG-185H-24A
Säädettävä LED-vakiojänniteteholähde Mean Well HLG-185H-24A
Mean Well HLG-185H-24A on 185 watin LED-vakiojännitelähde, joka tarjoaa vakaan 24V DC -lähtöjännitteen. Sen lähtöjännitettä ja -virtaa voidaan säätää sisäänrakennettujen potentiometrien avulla, mikä mahdollistaa joustavan käytön erilaisissa LED-valaistussovelluksissa.
Lisätietoja
Lisätietoja
<h3 data-start="2588" data-end="2609"><strong data-start="2592" data-end="2609">Käyttökohteet</strong></h3>
<p data-start="2611" data-end="2696"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">HLG-185H-24A soveltuu monenlaisiin LED-valaistussovelluksiin, kuten:</span></p>
<ul data-start="2698" data-end="2926">
<li data-start="2698" data-end="2723"><strong data-start="2700" data-end="2721">LED-katuvalaistus</strong></li>
<li data-start="2724" data-end="2766"><strong data-start="2726" data-end="2764">LED-teollisuusvalaistus (high-bay)</strong></li>
<li data-start="2767" data-end="2803"><strong data-start="2769" data-end="2801">Pysäköintialueiden valaistus</strong></li>
<li data-start="2804" data-end="2829"><strong data-start="2806" data-end="2827">LED-kalastusvalot</strong></li>
<li data-start="2830" data-end="2861"><strong data-start="2832" data-end="2859">LED-kasvihuonevalaistus</strong></li>
<li data-start="2862" data-end="2926"><strong data-start="2864" data-end="2924">Tyyppi "HL" käyttöön luokan I, Division 2 -sovelluksissa</strong></li>
</ul>
Tekniset tiedot
Tekniset tiedot
<table data-start="318" data-end="2581">
<thead data-start="318" data-end="401">
<tr data-start="318" data-end="401">
<th data-start="318" data-end="352"><strong data-start="320" data-end="334">Ominaisuus</strong></th>
<th data-start="352" data-end="401"><strong data-start="354" data-end="362">Arvo</strong></th>
</tr>
</thead>
<tbody data-start="486" data-end="2581">
<tr data-start="486" data-end="622">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Malli</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">HLG-185H-24A</span></td>
</tr>
<tr data-start="623" data-end="751">

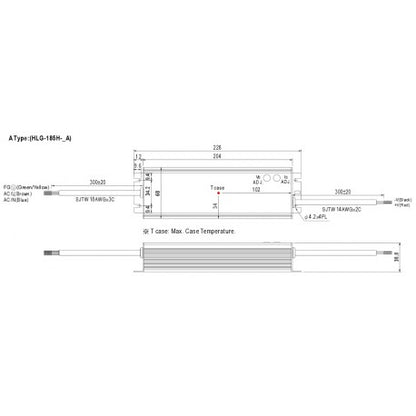

<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Mitat</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">244,2 x 68 x 38,8 mm</span></td>
</tr>
<tr data-start="752" data-end="877">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="15" data-is-last-node="" data-is-only-node="">Tulojännite</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">90–305V AC, 47–63Hz</span></td>
</tr>
<tr data-start="878" data-end="986">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="16" data-is-last-node="" data-is-only-node="">Lähtöjännite</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">24V DC (säädettävissä 22–27V välillä)</span></td>
</tr>
<tr data-start="987" data-end="1088">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="14" data-is-last-node="" data-is-only-node="">Lähtövirta</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Enintään 7,8A (säädettävissä 3,9–7,8A välillä)</span></td>
</tr>
<tr data-start="1089" data-end="1204">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Tehokerroin (PF)</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">≥0,95 (täydellä kuormalla)</span></td>
</tr>
<tr data-start="1205" data-end="1338">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="14" data-is-last-node="" data-is-only-node="">Hyötysuhde</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Enintään 93,5%</span></td>
</tr>
<tr data-start="1339" data-end="1482">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="16" data-is-last-node="" data-is-only-node="">Dimmattavuus</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Ei</span></td>
</tr>
<tr data-start="1483" data-end="1611">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="11" data-is-last-node="" data-is-only-node="">Elinikä</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Enintään 62 000 tuntia</span></td>
</tr>
<tr data-start="1612" data-end="1741">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="19" data-is-last-node="" data-is-only-node="">Käyttölämpötila</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">-40°C – +70°C</span></td>
</tr>
<tr data-start="1742" data-end="1885">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="17" data-is-last-node="" data-is-only-node="">Suojausluokka</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">I</span></td>
</tr>
<tr data-start="1886" data-end="2023">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Kotelointiluokka</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">IP65</span></td>
</tr>
<tr data-start="2024" data-end="2129">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="11" data-is-last-node="" data-is-only-node="">Suojaus</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Oikosulku-, ylijännite-, ylikuormitus- ja ylikuumenemissuoja</span></td>
</tr>
<tr data-start="2130" data-end="2256">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="15" data-is-last-node="" data-is-only-node="">Hyväksynnät</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">UL, CUL, TUV, CE, CB</span></td>
</tr>
<tr data-start="2257" data-end="2390">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="23" data-is-last-node="" data-is-only-node="">RoHS-yhteensopivuus</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Kyllä</span></td>
</tr>
<tr data-start="2391" data-end="2581">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Takuu</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">7 vuotta</span></td>
</tr>
</tbody>
</table>
Datalehti
Datalehti
- Lataa tiedostoHLG-100 120 150 185 H -EMC-cer.pdf
- Lataa tiedostoUL8750-UL-cer.pdf
- Lataa tiedostoHLG-100 120 150 185 H -CB-cer.pdf
- Lataa tiedostoHLG-100 120 150 185 H -CE-dec.pdf
- Lataa tiedostoHLG-100 120 150 185 H -TUV-cer.pdf
- Lataa tiedostoHLG-185H-24-rpt.pdf
- Lataa tiedostoHLG-185H-spec.pdf
Käyttöohje
Käyttöohje
- Lataa tiedostoLED EN.pdf
