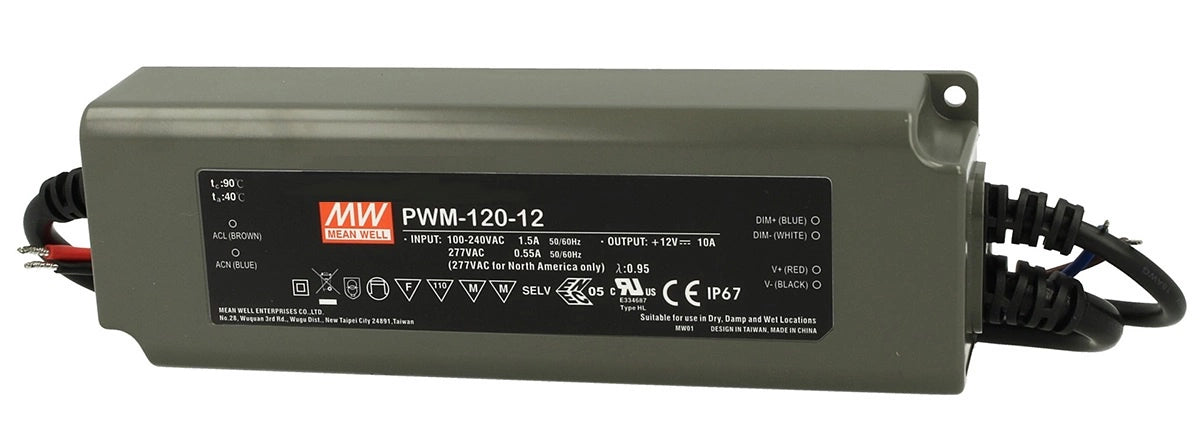

Mean Well PWM-120-12 – 12V 120W LED-vakiojännitelähde

<h3 data-start="2631" data-end="2652"><strong data-start="2635" data-end="2652">Käyttökohteet</strong></h3>
<p data-start="2654" data-end="2739"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">PWM-120-12 soveltuu monenlaisiin LED-valaistussovelluksiin, kuten:</span>?</p>
<ul data-start="2741" data-end="2992">
<li data-start="2741" data-end="2776"><strong data-start="2743" data-end="2774">LED-valonauhat ja -moduulit</strong></li>
<li data-start="2777" data-end="2810"><strong data-start="2779" data-end="2808">Arkkitehtoninen valaistus</strong></li>
<li data-start="2811" data-end="2840"><strong data-start="2813" data-end="2838">Mainosvalot ja kyltit</strong></li>
<li data-start="2841" data-end="2910"><strong data-start="2843" data-end="2908">Sisä- ja ulkovalaistus kosteissa tai pölyisissä ympäristöissä</strong></li>
<li data-start="2911" data-end="2992"><strong data-start="2913" data-end="2990">Muut pienjännitteiset 12V DC -laitteet, jotka hyötyvät PWM-himmennyksestä</strong></li>
</ul>

<table data-start="343" data-end="2624">
<thead data-start="343" data-end="426">
<tr data-start="343" data-end="426">
<th data-start="343" data-end="377"><strong data-start="345" data-end="359">Ominaisuus</strong></th>
<th data-start="377" data-end="426"><strong data-start="379" data-end="387">Arvo</strong></th>
</tr>
</thead>
<tbody data-start="511" data-end="2624">
<tr data-start="511" data-end="649">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Malli</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">PWM-120-12</span></td>
</tr>
<tr data-start="650" data-end="780">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Mitat</strong></span></td>

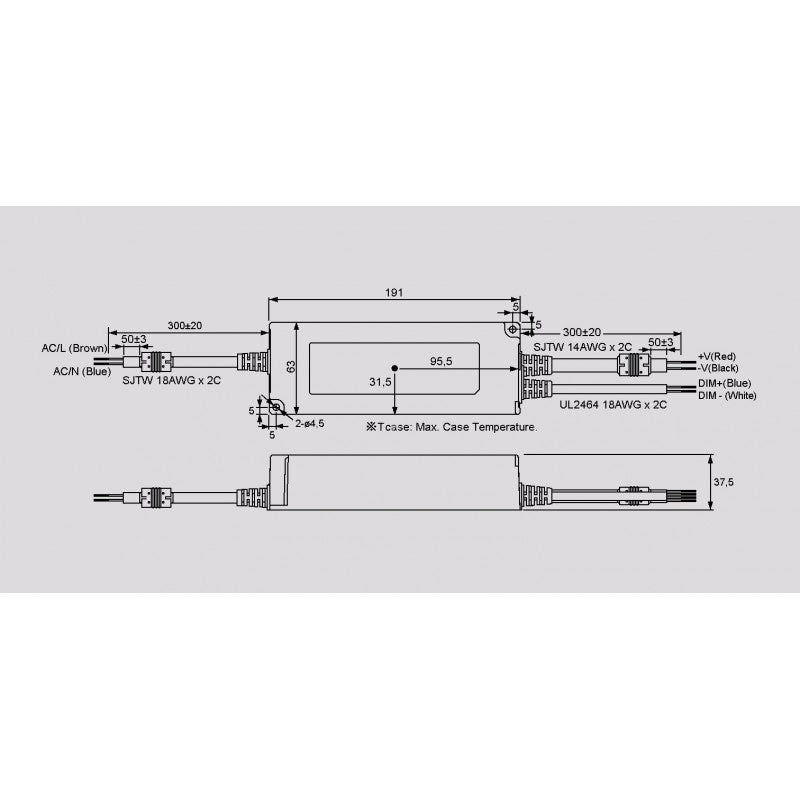

<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">191 x 63 x 37,5 mm</span></td>
</tr>
<tr data-start="781" data-end="908">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="15" data-is-last-node="" data-is-only-node="">Tulojännite</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">90–305V AC, 47–63Hz</span></td>
</tr>
<tr data-start="909" data-end="1048">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="16" data-is-last-node="" data-is-only-node="">Lähtöjännite</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">12V DC</span></td>
</tr>
<tr data-start="1049" data-end="1184">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="14" data-is-last-node="" data-is-only-node="">Lähtövirta</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Enintään 10A</span></td>
</tr>
<tr data-start="1185" data-end="1281">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Tehokerroin (PF)</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">?0,97 @ 115V AC, ?0,96 @ 230V AC, ?0,94 @ 277V AC (täysi kuorma)</span></td>
</tr>
<tr data-start="1282" data-end="1421">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="14" data-is-last-node="" data-is-only-node="">Hyötysuhde</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Noin 88%</span></td>
</tr>
<tr data-start="1422" data-end="1527">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="16" data-is-last-node="" data-is-only-node="">Dimmattavuus</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Kyllä, 0–10V DC, PWM-signaali tai vastus</span></td>
</tr>
<tr data-start="1528" data-end="1665">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="11" data-is-last-node="" data-is-only-node="">Elinikä</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Ei määritelty</span></td>
</tr>
<tr data-start="1666" data-end="1786">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="19" data-is-last-node="" data-is-only-node="">Käyttölämpötila</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">-40°C – +90°C (kotelo)</span></td>
</tr>
<tr data-start="1787" data-end="1929">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="17" data-is-last-node="" data-is-only-node="">Suojausluokka</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">II</span></td>
</tr>
<tr data-start="1930" data-end="2067">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Kotelointiluokka</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">IP67</span></td>
</tr>
<tr data-start="2068" data-end="2173">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="11" data-is-last-node="" data-is-only-node="">Suojaus</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Oikosulku-, ylijännite-, ylikuormitus- ja ylikuumenemissuoja</span></td>
</tr>
<tr data-start="2174" data-end="2299">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="15" data-is-last-node="" data-is-only-node="">Hyväksynnät</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">UL, CE, CB, ENEC, CCC</span></td>
</tr>
<tr data-start="2300" data-end="2433">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="23" data-is-last-node="" data-is-only-node="">RoHS-yhteensopivuus</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Kyllä</span></td>
</tr>
<tr data-start="2434" data-end="2624">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Takuu</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">5 vuotta</span></td>
</tr>
</tbody>
</table>

• Lataa tiedostoE334687-UL-cer 828b40ff-8654-4aee-bfb7-a925d67ec1f8.pdf
• Lataa tiedostoNPF PWM-120-CE-DEC.pdf
• Lataa tiedostoNPF PWM-120-EMC-cer.pdf
• Lataa tiedostoNPF-120 D BE PWM-120-CB-cer.pdf
• Lataa tiedostoPWM-120-12-rpt.pdf
• Lataa tiedostoPWM-120 DA -spec.pdf

• Lataa tiedostoLED EN 7804a66f-4a01-4391-a93d-66577bffc4b8.pdf
