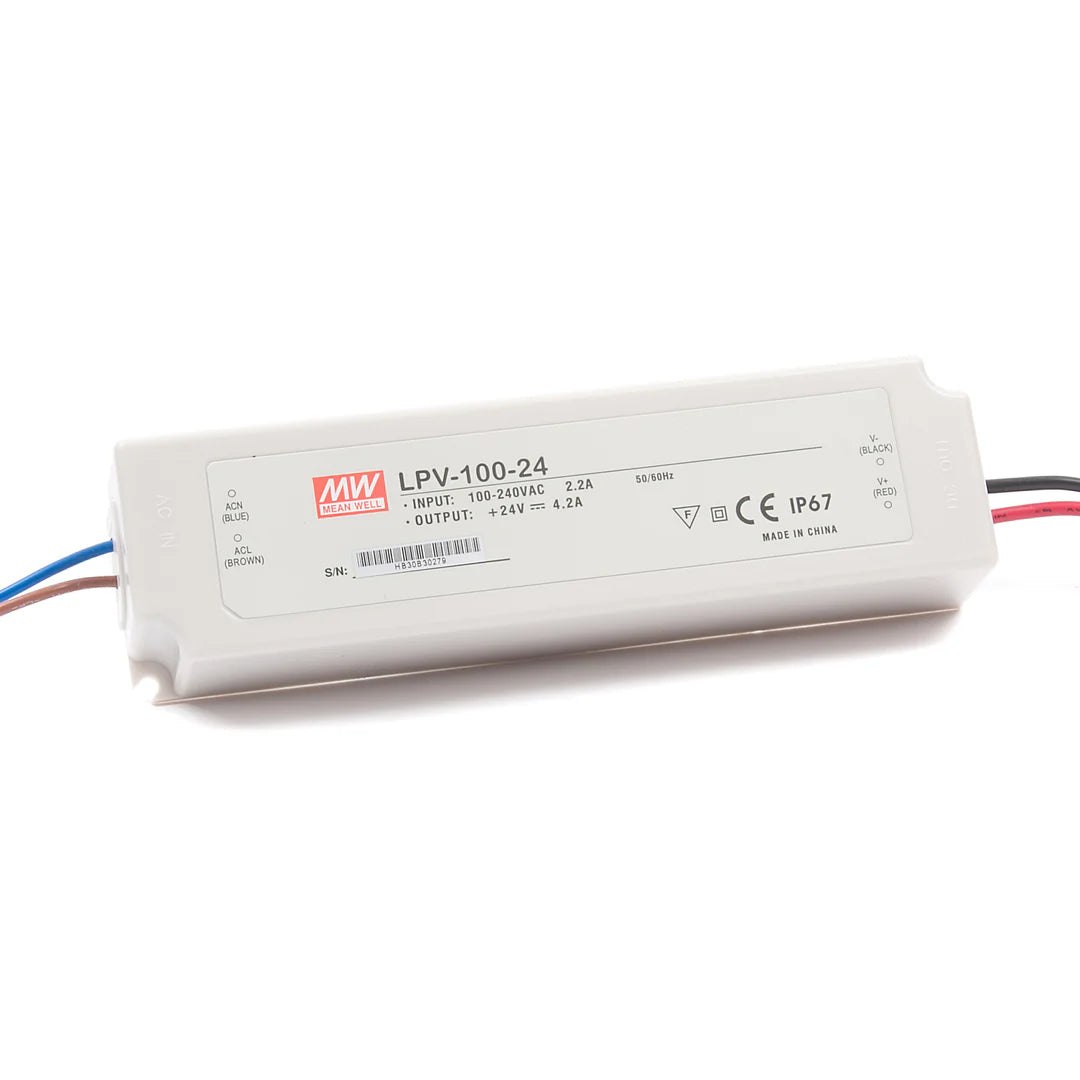

Mean Well LPV-100-24 – 24V 100W LED-vakiojännitelähde

<h3 data-start="2683" data-end="2704"><strong data-start="2687" data-end="2704">Käyttökohteet</strong></h3>
<p data-start="2706" data-end="2791"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">LPV-100-24 soveltuu monenlaisiin LED-valaistussovelluksiin, kuten:</span>​</p>
<ul data-start="2793" data-end="2985">
<li data-start="2793" data-end="2824"><strong data-start="2795" data-end="2822">LED-nauhat ja -moduulit</strong></li>
<li data-start="2825" data-end="2858"><strong data-start="2827" data-end="2856">Arkkitehtoninen valaistus</strong></li>
<li data-start="2859" data-end="2888"><strong data-start="2861" data-end="2886">Mainosvalot ja kyltit</strong></li>
<li data-start="2889" data-end="2938"><strong data-start="2891" data-end="2936">Sisä- ja ulkovalaistus kosteissa tiloissa</strong></li>
<li data-start="2939" data-end="2985"><strong data-start="2941" data-end="2983">Muut pienjännitteiset 24V DC -laitteet</strong></li>
</ul>

<table data-start="305" data-end="2676">
<thead data-start="305" data-end="388">
<tr data-start="305" data-end="388">
<th data-start="305" data-end="339"><strong data-start="307" data-end="321">Ominaisuus</strong></th>
<th data-start="339" data-end="388"><strong data-start="341" data-end="349">Arvo</strong></th>
</tr>
</thead>
<tbody data-start="473" data-end="2676">
<tr data-start="473" data-end="611">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Malli</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">LPV-100-24</span></td>
</tr>
<tr data-start="612" data-end="744">

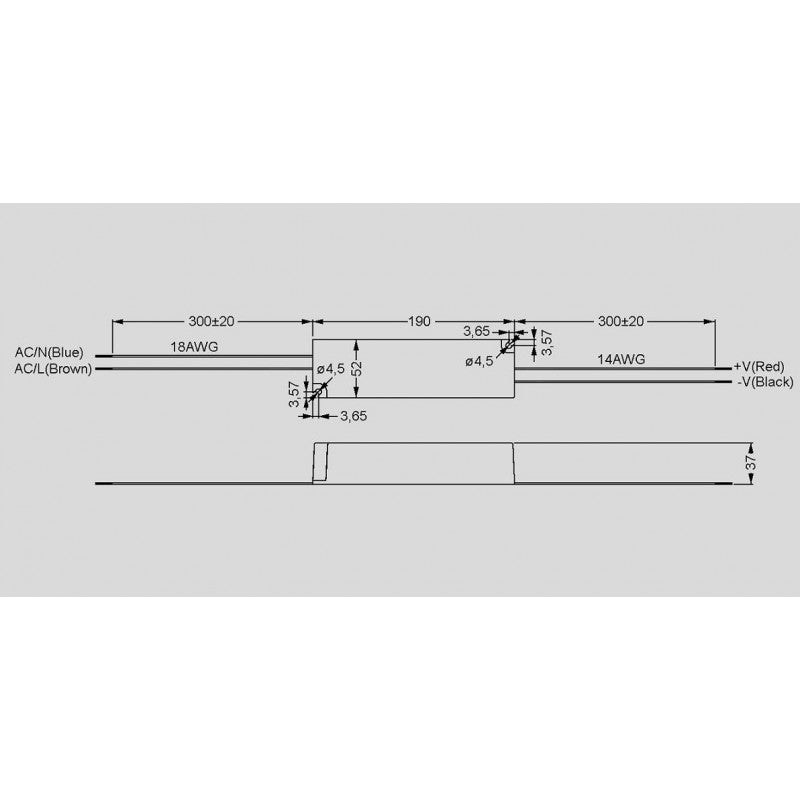

<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Mitat</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">190 x 52 x 37 mm</span></td>
</tr>
<tr data-start="745" data-end="870">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="15" data-is-last-node="" data-is-only-node="">Tulojännite</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">90–264V AC, 47–63Hz</span></td>
</tr>
<tr data-start="871" data-end="1010">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="16" data-is-last-node="" data-is-only-node="">Lähtöjännite</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">24V DC</span></td>
</tr>
<tr data-start="1011" data-end="1145">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="14" data-is-last-node="" data-is-only-node="">Lähtövirta</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Enintään 4,2A</span></td>
</tr>
<tr data-start="1146" data-end="1274">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Tehokerroin (PF)</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Ei määritelty</span></td>
</tr>
<tr data-start="1275" data-end="1414">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="14" data-is-last-node="" data-is-only-node="">Hyötysuhde</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Noin 88%</span></td>
</tr>
<tr data-start="1415" data-end="1558">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="16" data-is-last-node="" data-is-only-node="">Dimmattavuus</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Ei</span></td>
</tr>
<tr data-start="1559" data-end="1696">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="11" data-is-last-node="" data-is-only-node="">Elinikä</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Ei määritelty</span></td>
</tr>
<tr data-start="1697" data-end="1826">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="19" data-is-last-node="" data-is-only-node="">Käyttölämpötila</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">-25°C – +70°C</span></td>
</tr>
<tr data-start="1827" data-end="1969">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="17" data-is-last-node="" data-is-only-node="">Suojausluokka</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">II</span></td>
</tr>
<tr data-start="1970" data-end="2107">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Kotelointiluokka</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">IP67</span></td>
</tr>
<tr data-start="2108" data-end="2214">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="11" data-is-last-node="" data-is-only-node="">Suojaus</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Oikosulku-, ylijännite- ja ylikuormitussuoja</span></td>
</tr>
<tr data-start="2215" data-end="2351">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="15" data-is-last-node="" data-is-only-node="">Hyväksynnät</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">UL, CE, CB</span></td>
</tr>
<tr data-start="2352" data-end="2485">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="23" data-is-last-node="" data-is-only-node="">RoHS-yhteensopivuus</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Kyllä</span></td>
</tr>
<tr data-start="2486" data-end="2676">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Takuu</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">2 vuotta</span></td>
</tr>
</tbody>
</table>

• Lataa tiedostoE334687-UL-cer b49b466f-48b4-4169-8fa0-1267450e4d36.pdf
• Lataa tiedostoLPV-100-12-rpt.pdf
• Lataa tiedostoLPV-100-CE-dec.pdf
• Lataa tiedostoLPV-100-EMC-cer.pdf
• Lataa tiedostoLPV-100-spec.pdf

• Lataa tiedostoLED EN 7804a66f-4a01-4391-a93d-66577bffc4b8.pdf
