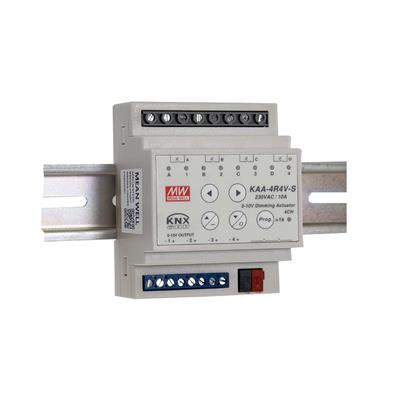

MEAN WELL KAA-4R4V-10S – 4-kanavainen KNX LED-aktuaattori/himmennin

<h4 data-start="2352" data-end="2383"><strong data-start="2357" data-end="2383">Keskeiset ominaisuudet</strong></h4>
<ul data-start="2385" data-end="3337">
<li data-start="2385" data-end="2537">
<strong data-start="2387" data-end="2410">Monipuolinen ohjaus</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Soveltuu LED-ohjainten ja perinteisten elektronisten liitäntälaitteiden kytkentään ja himmennykseen.</span> </li>
<li data-start="2538" data-end="2653">
<strong data-start="2540" data-end="2566">Korkea kuormitettavuus</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Jokainen kanava kestää jopa 10 A:n kuorman, mahdollistaen suuritehoisten valaisimien ohjauksen.</span>​</li>
<li data-start="2654" data-end="2763">
<strong data-start="2656" data-end="2676">0–10 V himmennys</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Tarjoaa 0–10 V:n himmennyslähtöjä, jotka ovat yhteensopivia useiden LED-ohjainten kanssa.</span>​</li>
<li data-start="2764" data-end="2874">
<strong data-start="2766" data-end="2787">Kaihtimien ohjaus</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Kahden kanavan yhdistäminen mahdollistaa kaihtimien tai verhojen ohjauksen.</span>​</li>
<li data-start="2875" data-end="2983">
<strong data-start="2877" data-end="2896">KNX Data Secure</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Sisäänrakennettu tietoturvatoiminto varmistaa turvallisen viestinnän KNX-järjestelmässä.</span>​</li>
<li data-start="2984" data-end="3095">
<strong data-start="2986" data-end="3008">Manuaalinen ohjaus</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Laitteessa on painikkeet manuaalista kytkentää ja himmennystä varten, sekä LED-merkkivalot kunkin kanavan tilan näyttämiseen.</span>​</li>
<li data-start="3096" data-end="3216">
<strong data-start="3098" data-end="3129">Mukautettava himmennyskäyrä</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Himmennyskäyrä voidaan asettaa lineaariseksi tai logaritmiseksi käyttäjäkokemuksen optimoimiseksi.</span>​</li>
<li data-start="3217" data-end="3337">
<strong data-start="3219" data-end="3250">Aikatoiminnot ja skenaariot</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Ohjelmoitavissa erilaisia aikatoimintoja ja valaistusskenaarioita ETS-ohjelmiston kautta.</span>​</li>
</ul>
<hr data-start="3339" data-end="3342">
<h4 data-start="3344" data-end="3366"><strong data-start="3349" data-end="3366">Käyttökohteet</strong></h4>
<ul data-start="3368" data-end="3706">
<li data-start="3368" data-end="3479">
<strong data-start="3370" data-end="3392">Rakennusautomaatio</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Valaistuksen ja muiden kuormien älykäs ohjaus KNX-järjestelmissä.</span>​</li>
<li data-start="3480" data-end="3596">
<strong data-start="3482" data-end="3509">Toimisto- ja liiketilat</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Energiatehokas valaistuksen hallinta ja mukautettavat valaistustilat.</span>​</li>
<li data-start="3597" data-end="3706">
<strong data-start="3599" data-end="3619">Asuinrakennukset</strong>: <span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Kodinohjausjärjestelmät, jotka mahdollistavat valaistuksen ja kaihtimien integroinnin.</span>
</li>
</ul>

<table data-start="553" data-end="2345">
<thead data-start="553" data-end="619">
<tr data-start="553" data-end="619">
<th data-start="553" data-end="582"><strong data-start="555" data-end="569">Ominaisuus</strong></th>
<th data-start="582" data-end="619"><strong data-start="584" data-end="592">Arvo</strong></th>
</tr>
</thead>
<tbody data-start="687" data-end="2345">
<tr data-start="687" data-end="806">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Malli</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">KAA-4R4V-10S</span></td>
</tr>
<tr data-start="807" data-end="930">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="18" data-is-last-node="" data-is-only-node="">Kanavien määrä</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">4</span></td>
</tr>
<tr data-start="931" data-end="1045">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="28" data-is-last-node="" data-is-only-node="">Maksimikuorma per kanava</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">10 A</span></td>
</tr>
<tr data-start="1046" data-end="1163">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="18" data-is-last-node="" data-is-only-node="">Himmennyslähtö</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">0–10 V DC</span></td>
</tr>
<tr data-start="1164" data-end="1268">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="15" data-is-last-node="" data-is-only-node="">Tulojännite</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">21–31 V DC (KNX-väylästä)</span></td>
</tr>
<tr data-start="1269" data-end="1378">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="17" data-is-last-node="" data-is-only-node="">Virrankulutus</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">&lt; 5 mA (KNX-väylä)</span></td>
</tr>
<tr data-start="1379" data-end="1479">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="15" data-is-last-node="" data-is-only-node="">Asennustapa</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">DIN-kisko (4 moduulia, 72 mm)</span></td>
</tr>
<tr data-start="1480" data-end="1600">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Kotelointiluokka</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">IP20</span></td>
</tr>
<tr data-start="1601" data-end="1708">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="21" data-is-last-node="" data-is-only-node="">Mitat (L × K × S)</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">80 × 64 × 104 mm</span></td>
</tr>
<tr data-start="1709" data-end="1839">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Paino</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">210 g</span></td>
</tr>
<tr data-start="1840" data-end="1959">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Kotelomateriaali</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Muovi</span></td>
</tr>
<tr data-start="1960" data-end="2051">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="20" data-is-last-node="" data-is-only-node="">Suojaustoiminnot</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Ylikuormitus, ylijännite, oikosulku</span></td>
</tr>
<tr data-start="2052" data-end="2171">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="17" data-is-last-node="" data-is-only-node="">Sertifikaatit</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">CE, RoHS</span></td>
</tr>
<tr data-start="2172" data-end="2345">
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-start="0" data-end="9" data-is-last-node="" data-is-only-node="">Takuu</strong></span></td>
<td><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">3 vuotta</span></td>
</tr>
</tbody>
</table>

• Lataa tiedostoKAA-4R4V-S-spec.pdf
• Lataa tiedostoKAA-4R4V-CE-dec.pdf
