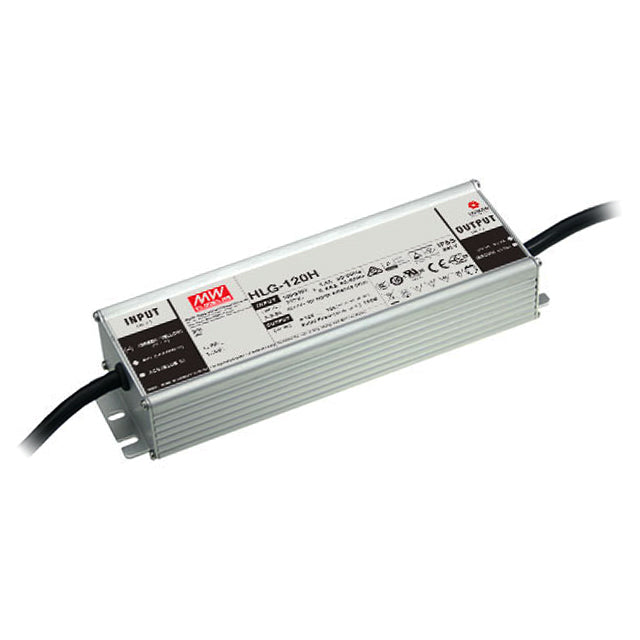

LED-vakiojänniteteholähde Mean Well HLG-120H-24

<h3 data-start="1996" data-end="2017"><strong data-start="2000" data-end="2017">Käyttökohteet</strong></h3>
<p data-start="2018" data-end="2092">HLG-120H-24 on suunniteltu monipuolisiin LED-valaistussovelluksiin, kuten:</p>
<ul data-start="2094" data-end="2431">
<li data-start="2094" data-end="2141">
<strong data-start="2096" data-end="2117">LED-katuvalaistus</strong> (LED street lighting)</li>
<li data-start="2142" data-end="2197">
<strong data-start="2144" data-end="2171">LED-teollisuusvalaistus</strong> (LED high-bay lighting)</li>
<li data-start="2198" data-end="2259">
<strong data-start="2200" data-end="2232">Pysäköintialueiden valaistus</strong> (Parking space lighting)</li>
<li data-start="2260" data-end="2308">
<strong data-start="2262" data-end="2287">LED-kalastusvalaistus</strong> (LED fishing lamp)</li>
<li data-start="2309" data-end="2366">
<strong data-start="2311" data-end="2338">LED-kasvihuonevalaistus</strong> (LED greenhouse lighting)</li>
<li data-start="2367" data-end="2431"><strong data-start="2369" data-end="2429">Tyyppi ”HL” käyttöön luokan I, Division 2 -sovelluksissa</strong></li>
</ul>

<table style="width: 100%; height: 372.282px;" data-end="2547" data-start="280">
<thead data-end="362" data-start="280">
<tr style="height: 19.5938px;" data-end="362" data-start="280">
<th style="width: 27.9658%; height: 19.5938px;" data-end="314" data-start="280"><strong data-end="296" data-start="282">Ominaisuus</strong></th>
<th style="width: 69.1251%; height: 19.5938px;" data-end="362" data-start="314"><strong data-end="324" data-start="316">Arvo</strong></th>
</tr>
</thead>
<tbody data-end="2547" data-start="446">
<tr style="height: 19.5938px;" data-end="582" data-start="446">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="9" data-start="0">Malli</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">HLG-120H-24</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="710" data-start="583">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="9" data-start="0">Mitat</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">228,8 x 68 x 38,8 mm</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="835" data-start="711">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="15" data-start="0">Tulojännite</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">90–305V AC, 47–63Hz</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="974" data-start="836">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="16" data-start="0">Lähtöjännite</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">24V DC</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="1110" data-start="975">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="14" data-start="0">Lähtövirta</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Enintään 5A</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="1225" data-start="1111">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="20" data-start="0">Tehokerroin (PF)</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">≥0,95 (täydellä kuormalla)</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="1360" data-start="1226">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="14" data-start="0">Hyötysuhde</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Enintään 93%</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="1480" data-start="1361">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="16" data-start="0">Dimmattavuus</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Ei</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="1608" data-start="1481">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="11" data-start="0">Elinikä</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Enintään 62 000 tuntia</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="1737" data-start="1609">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="19" data-start="0">Käyttölämpötila</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">-40°C – +70°C</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="1880" data-start="1738">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="17" data-start="0">Suojausluokka</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">I</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="1992" data-start="1881">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="20" data-start="0">Kotelointiluokka</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">IP65/IP67 (mallista riippuen)</span></td>
</tr>
<tr style="height: 39.1875px;" data-end="2098" data-start="1993">
<td style="width: 27.9658%; height: 39.1875px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="11" data-start="0">Suojaus</strong></span></td>
<td style="width: 69.1251%; height: 39.1875px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Oikosulku-, ylijännite-, ylikuormitus- ja ylikuumenemissuoja</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="2224" data-start="2099">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="15" data-start="0">Hyväksynnät</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">UL, CUL, TUV, CE, CB</span></td>
</tr>
<tr style="height: 39.1875px;" data-end="2357" data-start="2225">
<td style="width: 27.9658%; height: 39.1875px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="23" data-start="0">RoHS-yhteensopivuus</strong></span></td>
<td style="width: 69.1251%; height: 39.1875px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">Kyllä</span></td>
</tr>
<tr style="height: 19.5938px;" data-end="2547" data-start="2358">
<td style="width: 27.9658%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]"><strong data-is-only-node="" data-is-last-node="" data-end="9" data-start="0">Takuu</strong></span></td>
<td style="width: 69.1251%; height: 19.5938px;"><span class="relative -mx-px my-[-0.2rem] rounded px-px py-[0.2rem]">7 vuotta</span></td>
</tr>
</tbody>
</table>

• Lataa tiedostoHLG-120H-24 eng tds.pdf
• Lataa tiedostoHLG-100 120 150 185 H -TUV-cer.pdf
• Lataa tiedostoHLG-100 120 150 185 H -CB-cer.pdf
• Lataa tiedostoHLG-100 120 150 185 H -CE-dec.pdf
• Lataa tiedostoHLG-100 120 150 185 H -EMC-cer.pdf
• Lataa tiedostoHLG-120H-24-rpt.pdf

• Lataa tiedostoLED EN.pdf
