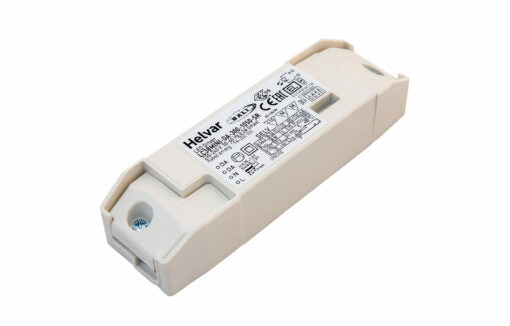

Helvar LC38MINI-DA-300-1050-SR – 38 W DALI-2 himmennettävä vakio­virtaohjain

<div class="overflow-x-auto contain-inline-size">

</div>
<hr data-end="2138" data-start="2135">
<h4 data-end="2171" data-start="2140"><strong data-end="2171" data-start="2145">Keskeiset ominaisuudet</strong></h4>
<ul data-end="2544" data-start="2173">
<li data-end="2233" data-start="2173">
<strong data-end="2201" data-start="2177">DALI-2 himmennettävä</strong> (1–100 %, amplitudihimmennys)</li>
<li data-end="2294" data-start="2234">
<strong data-end="2264" data-start="2238">Säädettävä vakio­virta</strong>: 300–1050 mA DIP-kytkimillä</li>
<li data-end="2348" data-start="2295">
<strong data-end="2315" data-start="2299">Flicker Free</strong>: täyttää IEEE 1789 -standardin</li>
<li data-end="2402" data-start="2349">
<strong data-end="2379" data-start="2353">Erittäin pitkä elinikä</strong>: jopa 100 000 tuntia</li>
<li data-end="2435" data-start="2403"><strong data-end="2433" data-start="2407">Integroitu vedonpoisto</strong></li>
<li data-end="2491" data-start="2436">
<strong data-end="2480" data-start="2440">Yhteensopiva hätävalaistuksen kanssa</strong> (SELV60)</li>
<li data-end="2544" data-start="2492">
<strong data-end="2510" data-start="2496">PanelReady</strong>-hyväksytty valaisinratkaisuihin</li>
</ul>
<hr data-end="2549" data-start="2546">
<h4 data-end="2573" data-start="2551"><strong data-end="2573" data-start="2556">Käyttökohteet</strong></h4>
<ul data-end="2798" data-start="2575">
<li data-end="2604" data-start="2575">LED-paneelit ja -moduulit</li>
<li data-end="2647" data-start="2605">Toimisto-, koulu- ja sairaalavalaistus</li>
<li data-end="2712" data-start="2648">Kohteet, joissa vaaditaan DALI-ohjausta ja pitkää käyttöikää</li>
<li data-end="2798" data-start="2713">Valaistusratkaisut, joissa halutaan erittäin pientä vilkkumista ja pehmeä himmennys</li>
</ul>

<table data-end="2133" data-start="602">
<thead data-end="674" data-start="602">
<tr data-end="674" data-start="602">
<th data-end="631" data-start="602"><strong data-end="618" data-start="604">Ominaisuus</strong></th>
<th data-end="674" data-start="631"><strong data-end="641" data-start="633">Arvo</strong></th>
</tr>
</thead>
<tbody data-end="2133" data-start="748">
<tr data-end="820" data-start="748">
<td><strong data-end="759" data-start="750">Malli</strong></td>
<td>LC38MINI-DA-300-1050-SR</td>
</tr>
<tr data-end="893" data-start="821">
<td><strong data-end="839" data-start="823">Nimellisteho</strong></td>
<td>38 W</td>
</tr>
<tr data-end="966" data-start="894">
<td><strong data-end="919" data-start="896">Tulojännite (AC/DC)</strong></td>
<td>198–264 V AC / 176–275 V DC</td>
</tr>
<tr data-end="1039" data-start="967">
<td><strong data-end="983" data-start="969">Lähtövirta</strong></td>
<td>300–1050 mA (säädettävä DIP-kytkimellä)</td>
</tr>
<tr data-end="1112" data-start="1040">
<td><strong data-end="1062" data-start="1042">Lähtöjännitealue</strong></td>
<td>10–36 V DC</td>
</tr>
<tr data-end="1185" data-start="1113">
<td><strong data-end="1129" data-start="1115">Hyötysuhde</strong></td>
<td>jopa 90 %</td>
</tr>
<tr data-end="1258" data-start="1186">
<td><strong data-end="1208" data-start="1188">Tehokerroin (PF)</strong></td>
<td>0,95 @ täysi kuorma</td>
</tr>
<tr data-end="1331" data-start="1259">
<td><strong data-end="1272" data-start="1261">Flicker</strong></td>
<td>Flicker Free (IEEE 1789-2015)</td>
</tr>
<tr data-end="1403" data-start="1332">
<td><strong data-end="1347" data-start="1334">Himmennys</strong></td>
<td>DALI-2 (amplitudihimmennys, 1–100 %)</td>
</tr>
<tr data-end="1476" data-start="1404">
<td><strong data-end="1426" data-start="1406">Kotelointiluokka</strong></td>
<td>IP20</td>
</tr>
<tr data-end="1549" data-start="1477">
<td><strong data-end="1501" data-start="1479">Kotelon materiaali</strong></td>
<td>Muovi</td>
</tr>
<tr data-end="1622" data-start="1550">

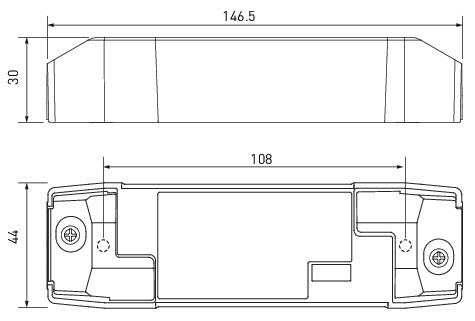

<td><strong data-end="1573" data-start="1552">Mitat (P × L × K)</strong></td>
<td>146,5 × 44 × 30 mm</td>
</tr>
<tr data-end="1695" data-start="1623">
<td><strong data-end="1644" data-start="1625">Käyttölämpötila</strong></td>
<td>–25…+45 °C</td>
</tr>
<tr data-end="1768" data-start="1696">
<td><strong data-end="1723" data-start="1698">Maks. kotelolämpötila</strong></td>
<td>85 °C</td>
</tr>
<tr data-end="1841" data-start="1769">
<td><strong data-end="1782" data-start="1771">Elinikä</strong></td>
<td>jopa 100 000 h @ tc 80 °C</td>
</tr>
<tr data-end="1914" data-start="1842">
<td><strong data-end="1864" data-start="1844">Suojaustoiminnot</strong></td>
<td>Oikosulku, ylikuormitus, ylijännite</td>
</tr>
<tr data-end="1987" data-start="1915">
<td><strong data-end="1938" data-start="1917">Itsenäinen käyttö</strong></td>
<td>Sallittu</td>
</tr>
<tr data-end="2060" data-start="1988">
<td><strong data-end="2006" data-start="1990">Käyttöluokat</strong></td>
<td>Luokka I, II ja III valaisimet</td>
</tr>
<tr data-end="2133" data-start="2061">
<td><strong data-end="2072" data-start="2063">Takuu</strong></td>
<td>3 vuotta</td>
</tr>
</tbody>
</table>
